Ohlins 170mm RXF36 M.3 Air 29" Fork 38mm Offset - The Lost Co. - Ohlins - FGMTB 3617 2461 - B - OH1454 -

Ohlins 140mm RXF36 M.3 Air 29" Fork 44mm Offset

Regular price: $1,956.00
Sale price: $1,956.00

Sold Out - Notify Me When Available

Quantity

SKU: FGMTB 3614 2411

Shipping:

This item ships globally

Pickup Not Available in our Bellingham, WA shop Store Info

Description
Product Question?

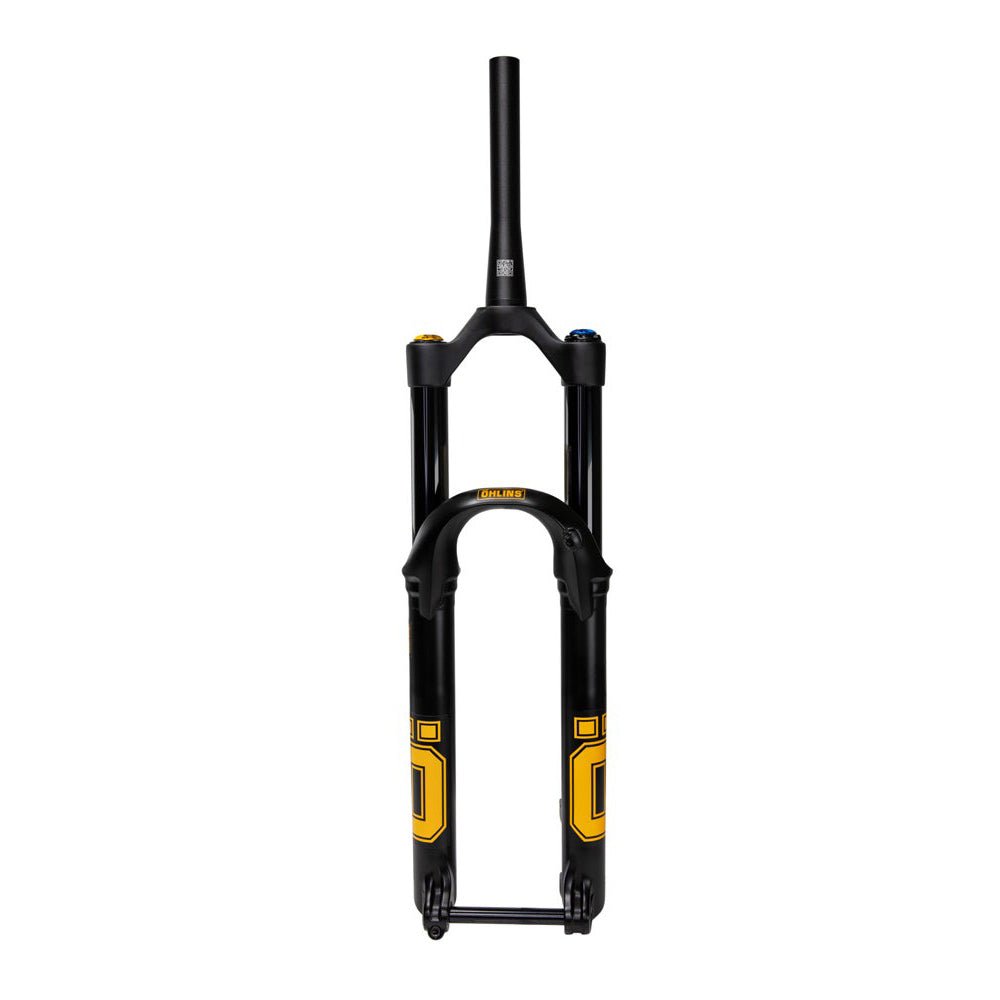

The RXF36 m.3 features an all-new chassis built around the race-proven TTX18 cartridge. This lightweight and highly progressive fork is fully optimized for demanding, next-level trail riding performance.

The race-winning TTX18 damping technology from the DH38 Race Fork has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. With the new chassis, the fork delivers ultra-sensitive tracking over small bumps while maintaining Öhlins' signature precise steering and predictable handling—no matter how long or hard it's pushed.

The RXF36 m.3’s adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment. It features a floating axle design for minimal friction and weighs 2050g (with bolts and axle). The retuned, twin piston, three chamber air-spring system allows you to completely dial-in the level of progression—from the initial movement, right through to the bottom out. The air spring is cartridge-based, allowing for easy swaps between coil and air if desired.

TECH SPECS

Model	Ohlins RXF36 M.3
Wheel Size	29"
Steerer (Stem/Race)	Tapered
Offset	44
Travel	140mm (adjustable between 140mm and 160mm by swapping air spring)
Max Tire Width	2.6"
Spring Type	Air
Brake Mount	180mm Post Mount
Hub Spacing	15x110mm
Axle to Crown	553mm
Weight	2050g (with bolts and axle)
Color	Black

MPN: FGMTB 3614 2411

UPC:B-OH1450
