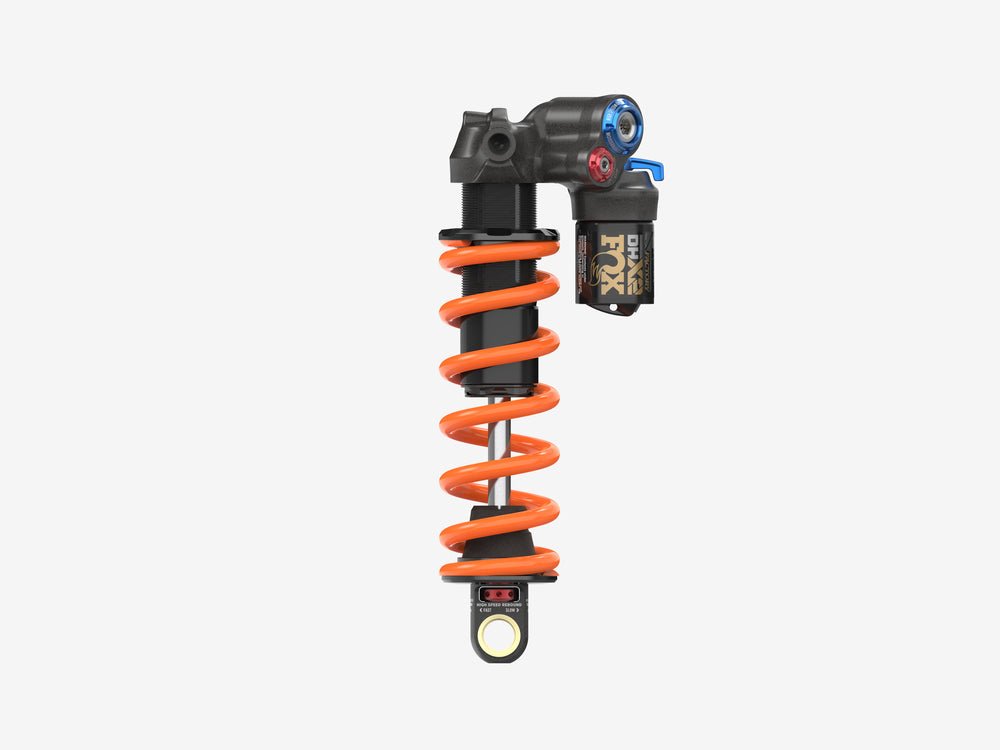

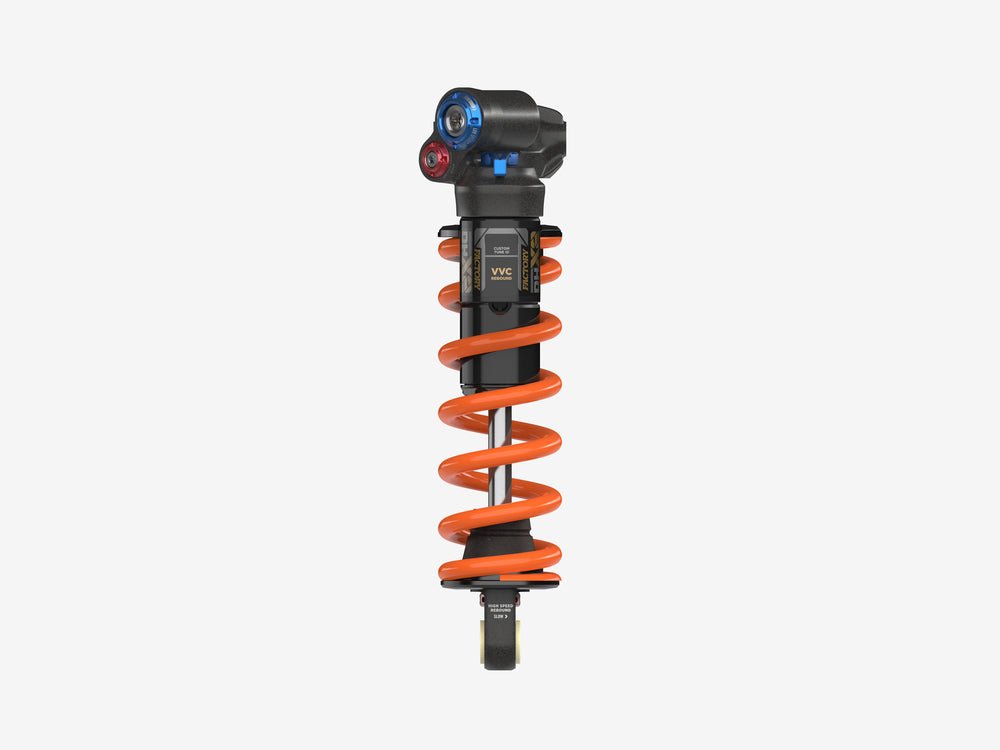

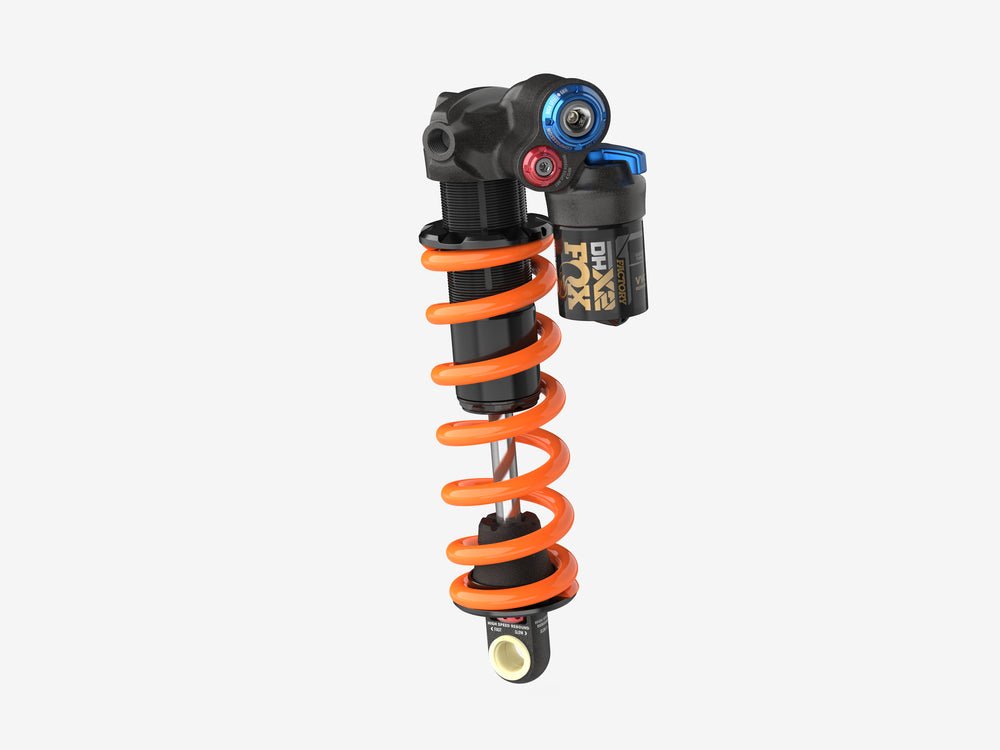

2025 Fox DHX2 Shock w/ Climb Switch - 205 x 60/62.5/65 mm

Whether you're racing a clock or just smashing through rocky terrain for pure fun, the Fox Factory DHX2 offers a bounty of adjustability and performance to supplement your lap times and place a smile on your face. The DHX2's damper offers 4 independent adjustments with a super wide range of tunability, and the progressive damping is built specifically for modern bike designs and riding styles. The DHX2 also utilizes ultra low-friction internals to match the sensitivity of the coil spring itself. The MCU bottom-out bumper is ready to cradle you with comfort and control so you can keep rollin' without batting an eye. The DHX2 offers a very wide range of adjustability, making it ready to tackle the world's roughest trails, for any rider, on any bike, right out of the box.

*Please Note: Coil shocks and springs are sold separately.

Model, Size and Adjustments:

• Fox DHX2 Factory Series


• Low-Speed Compression - 16 clicks
• High-Speed Compression - 8 clicks
• Low-Speed Rebound - 16 clicks
• High-Speed Rebound (w/ VVC) - 8 clicks
• Independent 2-Position Climb Switch

• Coil Spring Preload Collar w/ Detents

• Trunnion - 205x60, 205x62.5, 205x65
• Not the size you need? Shop All Fox DHX2 Shocks

DHX2 Specs and Features

• NEW Gold Decal Graphics
• Shaft coating: Chromoly - Ultra-low friction, highly durable damper shaft finish
• Detents on spring collar to prevent loosening under light preload conditions
• High-flow main piston
• MCU bottom-out bumper for increased end stroke progression and control
• Ultra-low friction, highly durable hard chrome damper shaft finish
• Excellent high-speed rebound tunability with VVC
• Matching 8-click HSC and HSR on GRIP2 and X2 shocks
• Increased control and decreased harshness via linear damping
• Steel outer body and finned inner body for improved structural rigidity -and reduced hysteresis
• Relatively short reservoir length for better fit on more frames

Other Accessories and Content related to the Fox DHX2:

Wondering what size mounting hardware you might need? Or if you even need hardware at all? Check out our Complete Guide To Rear Shock Mounting Hardware to bolt the DHX2 to your frame!

Need help setting up your fancy new DHX2? Check out our in-depth suspension set up guide to get this shock dialed in!

Coil spring sold separately, use our spring fitment guide to get the right one for your shock.

Use our spring rate calculator to get the right weight spring for you, your bike, and your riding style.

Need help figuring out which spring to get? Check out our SLS VS Steel Springs blog to see the weight differences between the two.
