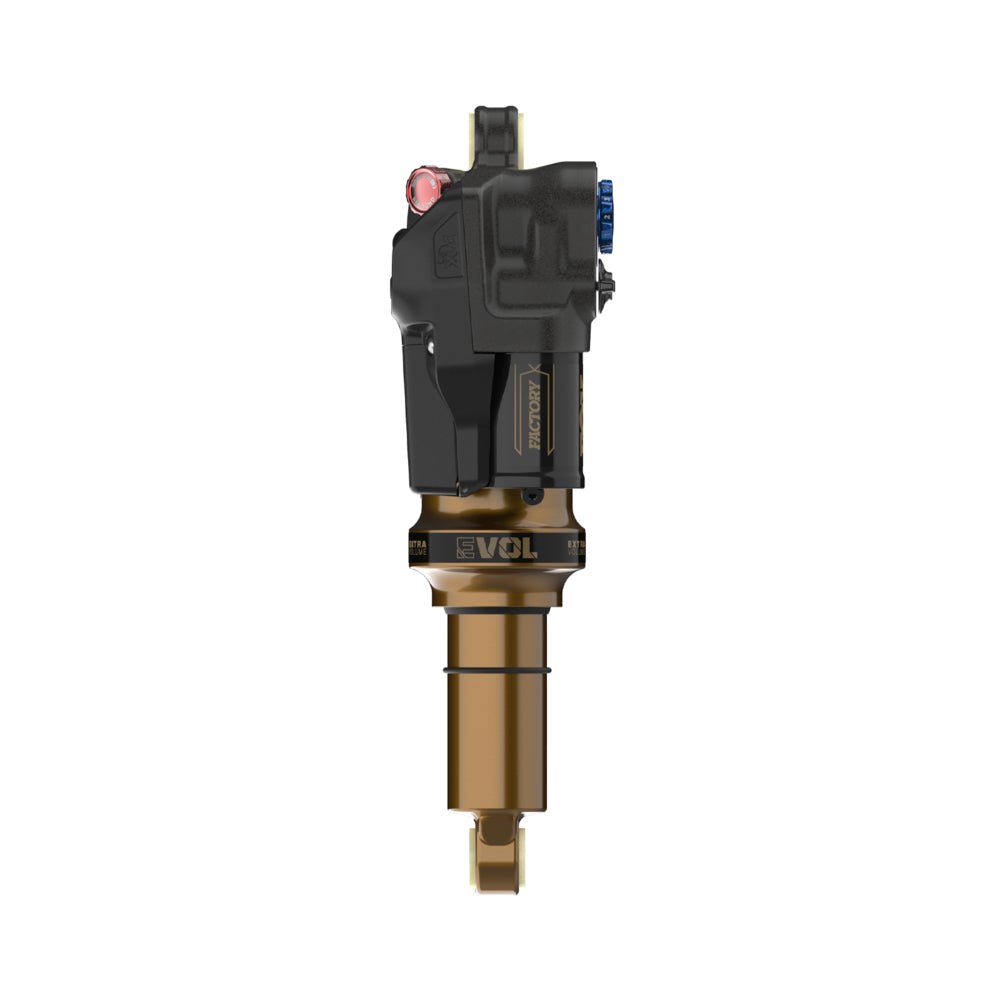

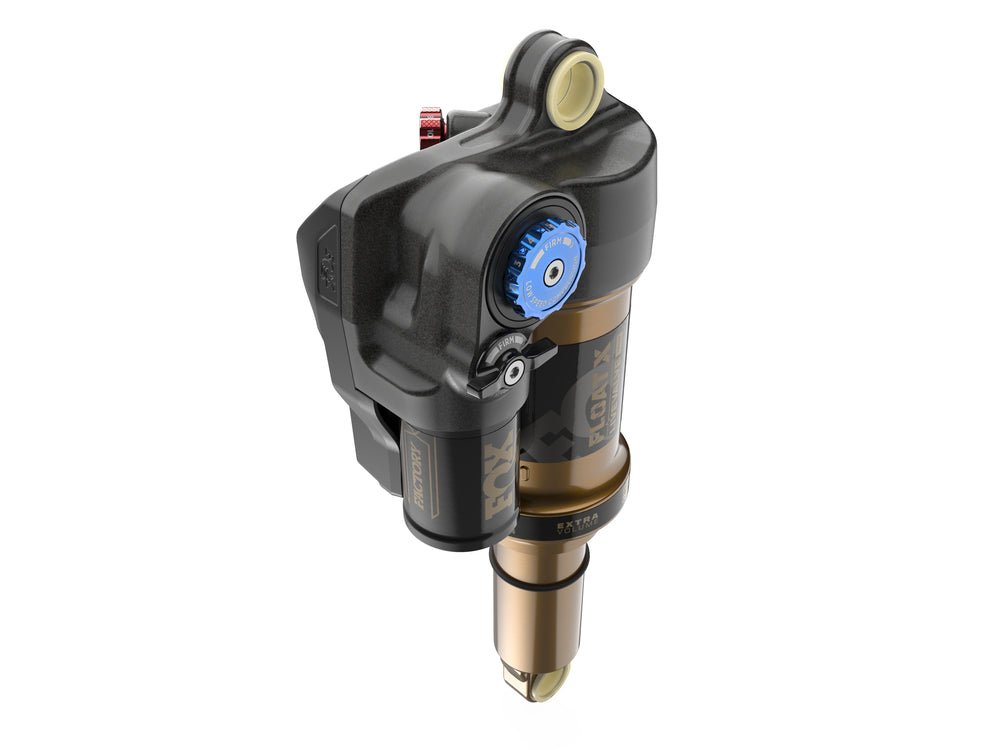

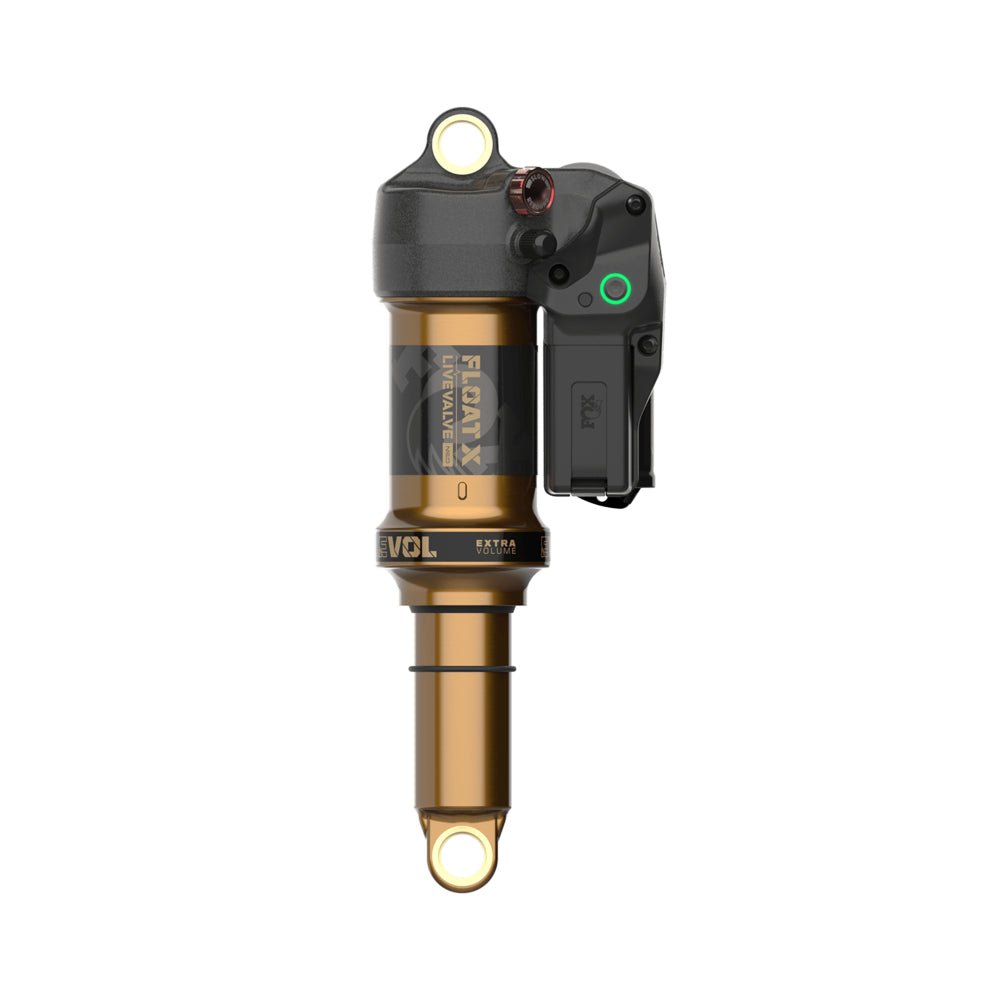

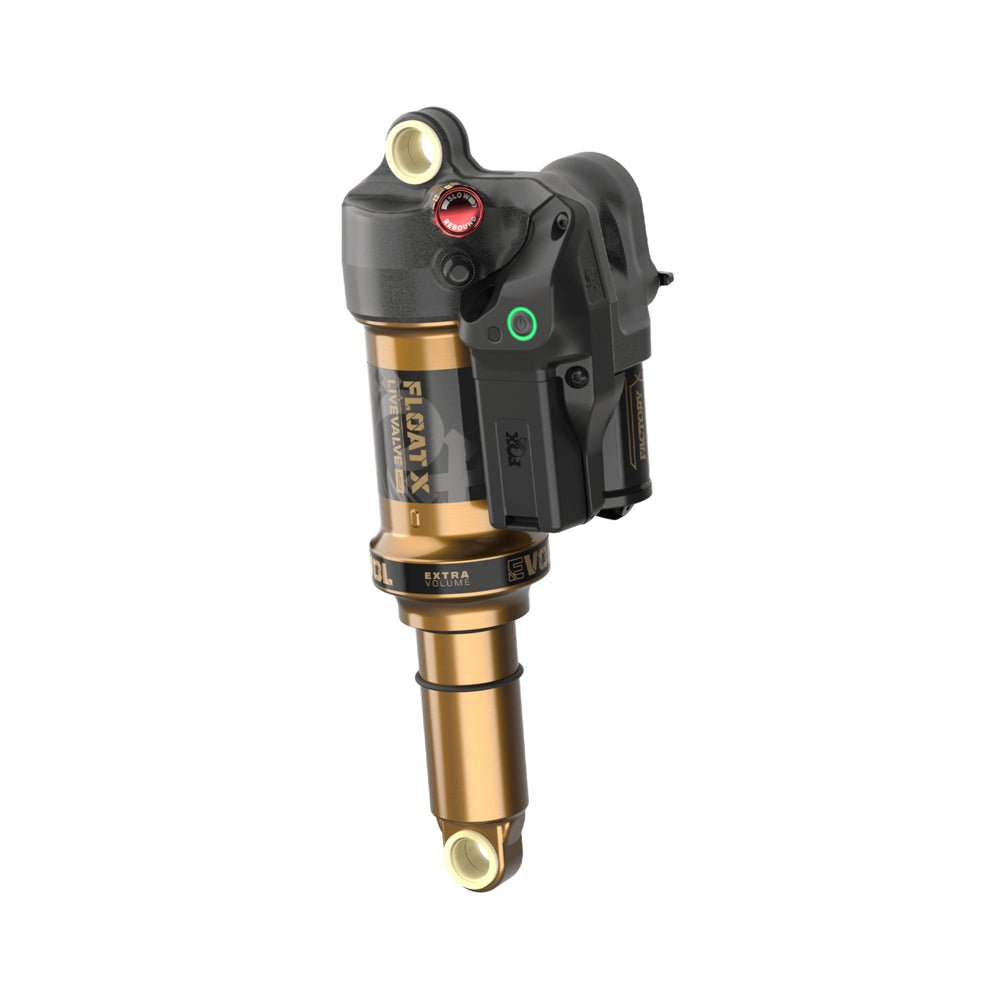

2025 Fox Float X Live Valve Neo Shock - 210 x 50/52.5/55 mm

Requires the Live Valve Neo Kit which is sold separately.

The Fox Float X Live Valve Neo builds on the Float X platform that packs DH performance into a trail shock sized package, but now with increased efficiency from the Live Valve system. Live Valve Neo uses sensors at both wheels to firm up your shock to increase pedaling efficiency on the climbs and open it up when you're looking for traction on the way down. Live Valve is ultra customizable with the Fox Bike app, letting you take complete control over what opens or closes the compression circuit on your shock, and you can read all about it in our in depth review!

The EVOL air can has proven itself to provide a plush and supportive experience that's highly tunable with volume spacers. Paired with the high-flow damper and its simple tool-free adjustability makes for a smooth ride and painless trail side adjustments. Fox has made the ultimate trail bike shock that's ready for everything from Downcountry to Enduro racing, and this shock was used to win the Enduro World Championships in 2024. This shock was engineered with modern, aggressive trail riding in mind, and was designed for you if you want a wide range of adjustments, high performance, a supportive ride feel, and unparalleled efficiency from the Live Valve Neo system.

Wondering what size mounting hardware you might need? Or if you even need hardware at all? Check out our Complete Guide To Rear Shock Mounting Hardware

Model, Size and Adjustments:

• Fox Float X Live Valve Neo Factory Series w/ Kashima Coating


• Low-Speed Compression - 11 clicks
• Low-Speed Rebound - 13 clicks
• Firm Mode Adjuster - 6 clicks

• Trackable Service Interval - 125 hours

• 210x50/52.5/55mm
• Standard mount
• Not the size you need? Shop All Fox Live Valve Neo Shocks

MY22+ Fox Float X Shock Specs:

• ALL-NEW chassis and damper
• High-flow main piston
• Air seal package
• Volume spacers with smaller increments (sold separately)
• MCU bottom out bumper
• Numbered tool-free 12 position Low-Speed Compression adjuster
• Increased rebound adjuster range over DPX2
• Optimized reservoir lengths per shock size
• Hydraulic top out feature
• Reduced damper noise
• Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
• Bearing hardware compatible eyelets on both sides
• Air valve location offers improved frame fitment and pump access

Other Content and Accessories related to the Fox Float X Live Valve Neo:

Volume Spacer Kits can be purchased separately to increase air spring tuning.

Need help setting up your new Float X? Check out our in-depth suspension set up guide to get this shock dialed in!

Grab a shock pump to inflate your shock.

To perform an air can service, you'll need an Float X Air Can Seal Kit as well as Fox Gold 20wt Oil
