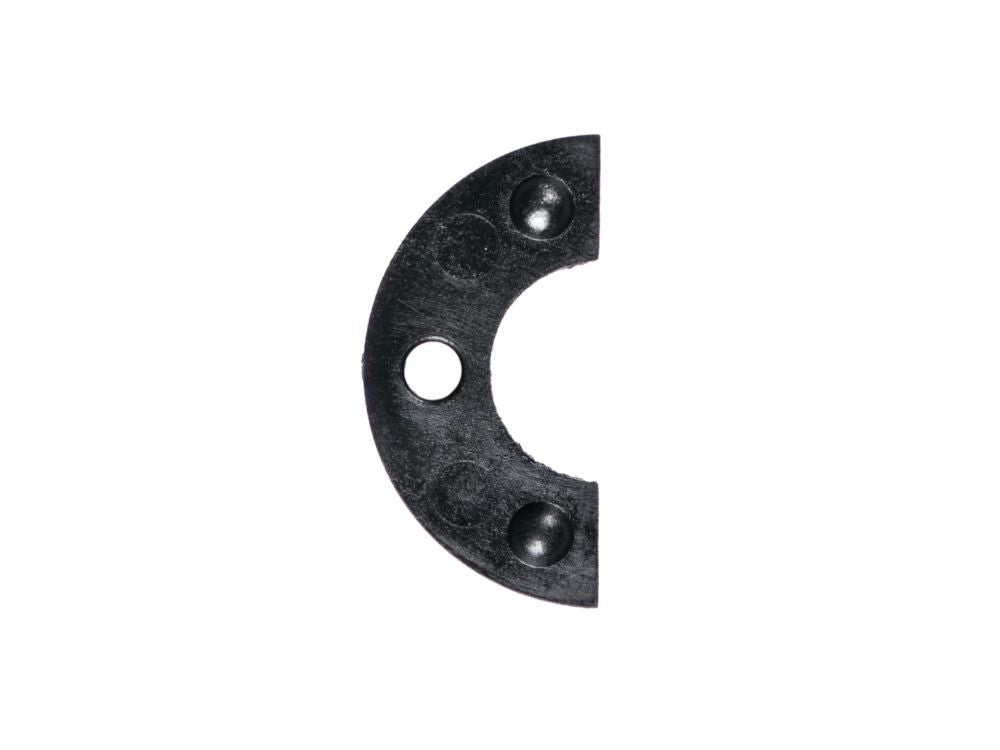

Fox DHX2 Metric Travel / Stroke Spacer - 2.5mm - 2021+ (Requires Qty 2)

Changing the stroke of the 2021+ Fox DHX2 coil shock is EASY! Simply purchase these stroke spacer chips and the screws in the appropriate lengths and install them into the shock in a matter of seconds.

Fits all 2021+ Fox DHX2 coil shocks in metric sizes.

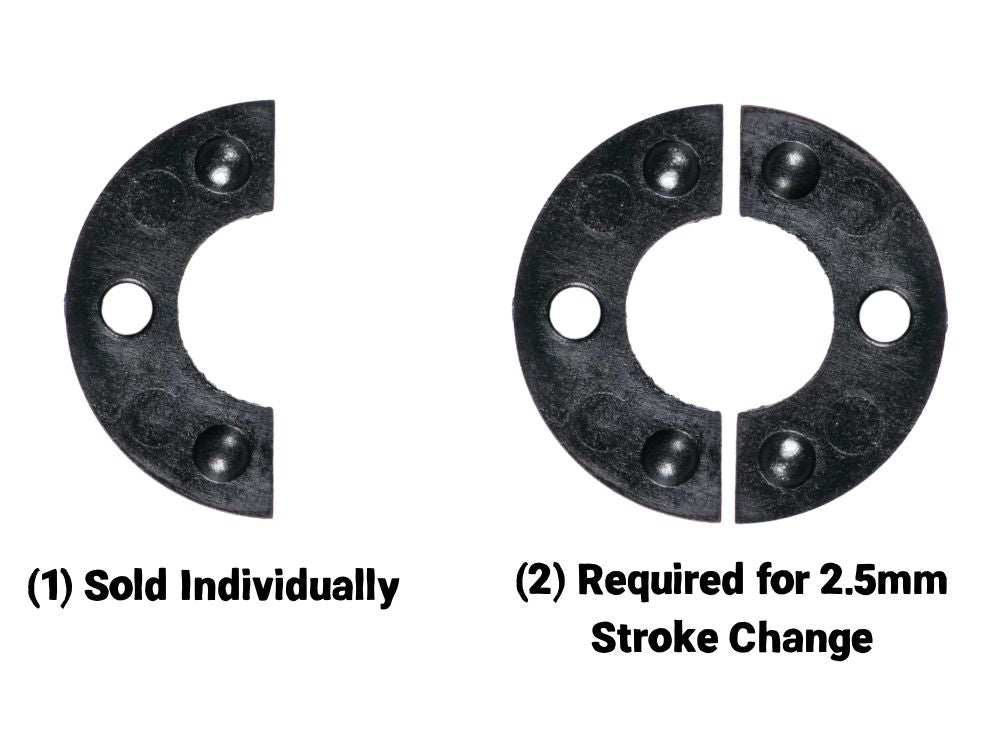

These are sold individually, so you will need to purchase quantity (2) for both spacers required to reduce stroke by each 2.5mm increment.

Purchasing the quantity below correlates to the amount of stroke reduction you'll get:

• (2) = Reduce stroke by 2.5 mm
• (4) = Reduce stroke by 5 mm
• (6) = Reduce stroke by 7.5 mm

You may also need to purchase the correct Fox Shock Stroke Spacer Screws for proper fitment as the screws currently in your shock are potentially the incorrect length for the stroke you're changing to.

INSTALLATION GUIDE: 2021+ Fox DHX2 Stroke/Travel Adjustment Procedure

Changing the stroke has absolutely no effect to the performance of the shock as DHX2 shocks are built specifically to have an easy stroke change. You'll notice that the DHX2 isn't even available in all sizes, and this is because Fox created such an easy adjustment that customers can simply change the stroke as needed. However, Fox does a terrible job at marketing this to riders which is where we come in :)

These come in handy when the shock you want is sold out or not manufactured in the size you need, enabling you to order a shock of the same eye-to-eye length and simply change the stroke yourself. This also helps when purchasing a used shock that is in the same eye-to-eye length as yours but in a different stroke. Or, if you're getting a new frame that uses the same eye-to-eye length and you want to transfer your DHX2 onto the new frame, you can change the stroke to fit the new frame.

Eye-to-Eye Length | Stroke Range:

• 190 mm | 37.5 - 40 - 42.5 - 45 mm


• 185 mm | 47.5 - 50 - 52.5 - 55 mm
• 210 mm | 47.5 - 50 - 52.5 - 55 mm


• 205 mm | 57.5 - 60 - 62.5 - 65 mm
• 230 mm | 57.5 - 60 - 62.5 - 65 mm


• 225 mm | 67.5 - 70 - 72.5 - 75 mm
• 250 mm | 67.5 - 70 - 72.5 - 75 mm

So whichever eye-to-eye length you have in the left side of the list above, the stroke can be set to any of the sizes listed in the stroke range on the right side.

*NOTE - THE LOST CO IS NOT RESPONSIBLE FOR ANY DAMAGE TO YOUR FRAME IF YOU OVER-STROKE YOUR REAR SHOCK IN HOPES OF ACHIEVING INCREASED REAR WHEEL TRAVEL. IF YOU ARE WANTING TO INCREASE YOUR SHOCK'S STROKE TO INCREASE YOUR FRAME'S REAR WHEEL TRAVEL, YOU MUST CONTACT YOUR FRAME MANUFACTURER TO CHECK FOR CLEARANCE AND/OR WARRANTY ISSUES.
