- 1. UDH Frame
2. XD Driver
3. 12-Speed flattop compatible chain breaker, such as the Park Tool CT-3.3
4. Torque wrench capable of 54 Nm and a hex socket
SRAM XX T-Type AXS Groupset - 170mm - D2
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped out within 1 business day! Add this item to your cart to see shipping options at checkout.

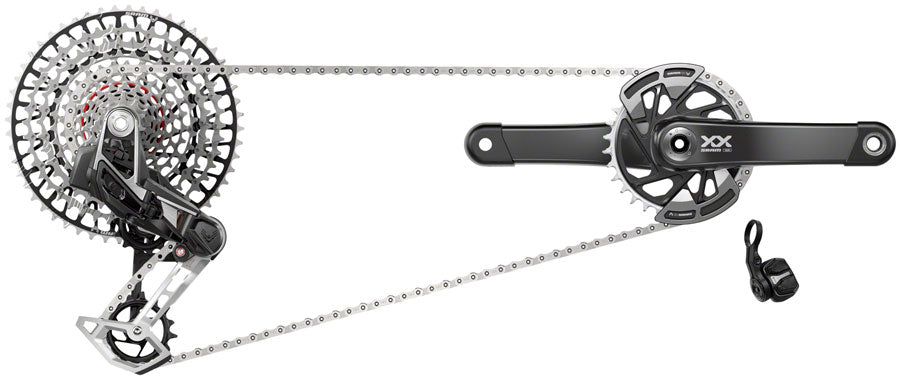

With the perfect balance of robustness and weight savings the SRAM XX Eagle T-Type AXS™ Transmission groupset has the strength to handle big enduro days with the weight to make it manageable. This T-Type transmission takes a holistic approach to a bicycles shifting an entire system synchronized providing you with a superior ride experience.
- AXS™ Pod ULT features a “click and fire” two-button design that transforms the crucial act of rider inputs into a vastly more personal experience for all your AXS™ controls
- Engineered as integrated interdependent transmission components the XX Eagle T-Type rear derailleur mounts around the wheel axle itself contacting the cassette directly with a first-of-its-kind Hangerless Interface
- XX T-Type derailleur offers the same intuitive pairing and set-up procedure as SRAM's Eagle AXS™ derailleurs
- Derailleur features an overload clutch that boosts resiliency and a tucked-in profile that houses protection covers on the fully replaceable B-knuckle and outer link
- To further its performance the lower pulley called "Magic Wheel" keeps spinning if an object becomes lodged
- Shifting under load is made possible on the XX T-Type 10-52t cassette due to a combination of X-SYNC technology and cassette mapping creating seamless shifts even during your hardest power output
- D2 generation uses a USB-C charger. There are no other differences compared to the D1 generation.
XX Eagle AXS Transmission Compatibility and Install Notes
Compatability Checklist
Tools Needed
- 12-Speed Flattop Compatible Chain Breaker
- T25 Wrench
- 8mm Hex Wrench
- 8mm Hex Socket
- Torque wrench up to 54 Nm
- Grease (any type)
- Cassette Tool (socket style to fit torque wrench)
- Bottom Bracket tool (if installing a new bottom bracket)
- Tool for your specific rear axle
Torque Specs:
- Cranks = 54 Nm
- Cassette = 40 Nm
- RD Bolt = 35 Nm
- Pod Clamp = 2 Nm
